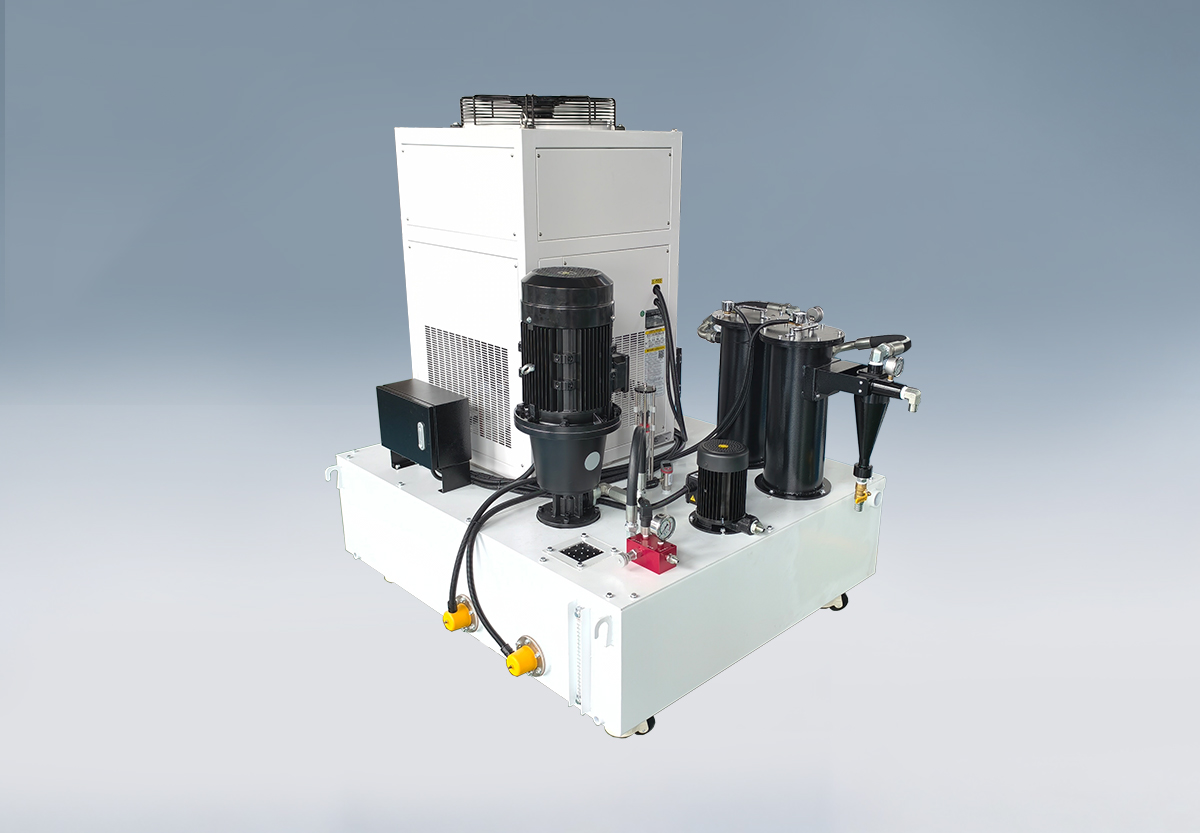

Integrating constant temperature control, precision filtration, pressure stabilization and intelligent management, this system delivers consistent and reliable cooling for precision processing equipment including CNC machining centers, EDM machines and grinders, effectively improving machining accuracy, workpiece surface finish and equipment service life.
METRICS
Ultra-precise temperature control within ±1℃: Adopts imported PID intelligent algorithm to maintain stable working temperature during machining.
Dual-circuit temperature control system: Independent primary and standby temperature control units guarantee uninterrupted operation.
Rapid temperature response: Real-time monitoring of inlet and outlet water temperature with millisecond-level regulation.
Wide adjustable temperature range: 15℃~35℃ to satisfy processing requirements of diverse workpiece materials.
Four-stage filtration configuration: Vortex separation + magnetic filtration + bag filtration + precision cartridge filtration.
Automatic slag removal system: Equipped with automatic scraping and draining devices for unattended operation.
Large-capacity filter tank: Optional volumes from 160L to 2000L to cut down filter replacement frequency.
In-line self-cleaning: Built-in backwashing system automatically cleans filter elements to extend service lifespan.
Constant-pressure water supply system to stabilize hydraulic pressure throughout machining.
Real-time pressure monitoring: Adjustable range 0~2.5 MPa with control accuracy of ±0.1 MPa.
Intelligent pressure regulation: Automatically adjusts water pressure to match varied machining processes.
